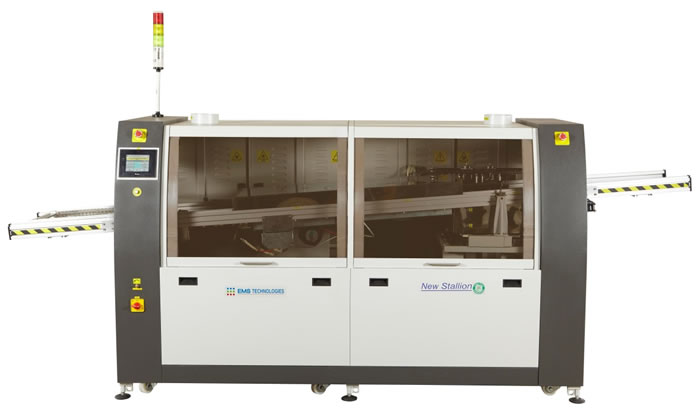

Stallion plc cc jw

The ultimate choice for a fast moving generation

Stallion plc cc jw

  1. PLC Controlled with Touch screen panel
  2. Profile storage for 999 PCBs with USB drive
  3. Management data, Password protected
  4. RS 485 Interface
  5. Pallet (carrier) type conveyor for max. PCB width 300 mm
  6. 3, 4, & 5 Degrees adjustable conveyor angle
  7. 2 Stage pre-heating combination of hot air convection pre-heater or IR pre- heaters
  8. Specially coated solder pot suitable for Lead-free or Titanium solder- pot option
  9. O-Wave option for SMD soldering, ( Optional Dual wave )
  10. Cooling fan at the exit
  11. PID control for pre-heaters and solder pot
  12. N2 Curtain option
  13. Roll out solder pot for ease of maintenance
  14. Exchange solder pot available as option
  15. Highly reliable AC motors with in-built speed control for stable wave height, SMD O-Wave and conveyor speed
  16. 12 kW power consumption
